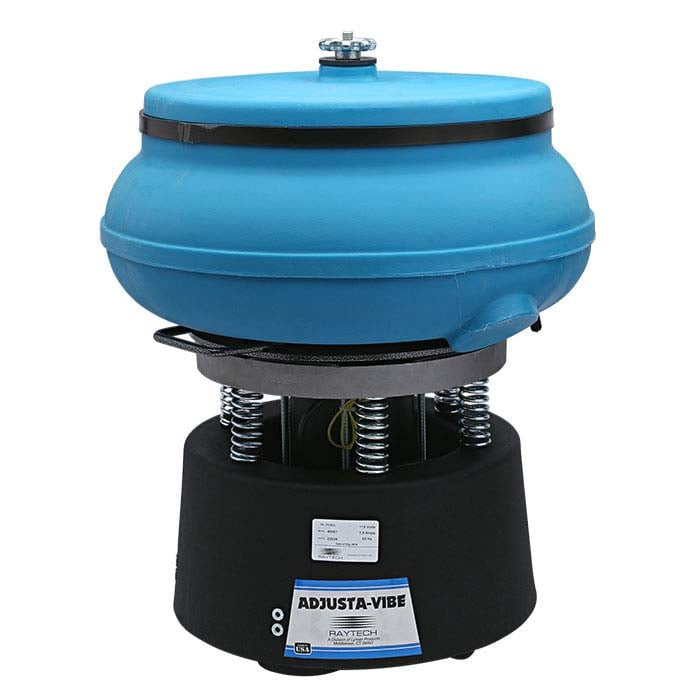

Raytech TD-75 Vibratory Finisher

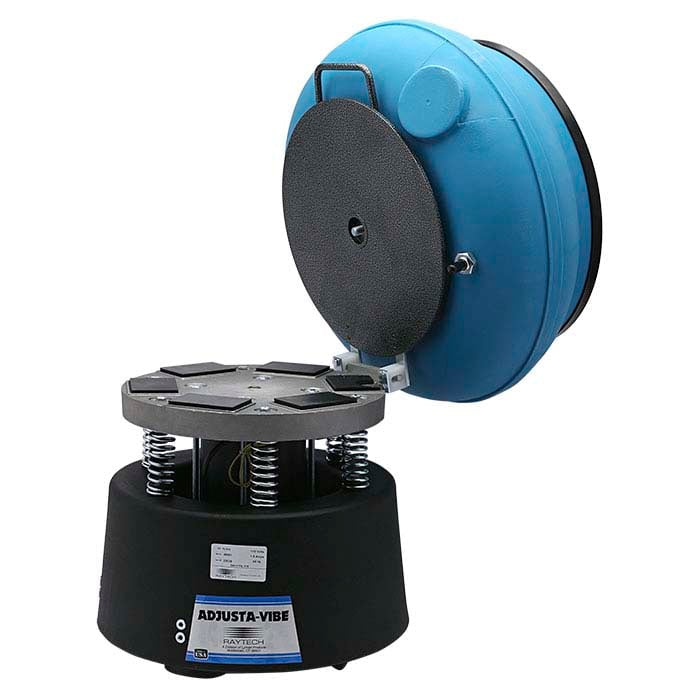

The Raytech TD-75 is a heavy-duty vibratory tumbler engineered for efficient mass finishing of jewelry and metal parts. With its innovative Tumble-Dump design, the entire bowl easily tilts to one side, letting you pour out media and workpieces quickly—no scooping necessary. This saves time during large batch operations and reduces mess.

Built with the powerful Raytech Adjusta-Vibe system, the TD-75 allows full control over the tumbling force by adjusting the amplitude. Whether you’re polishing delicate plastic pieces or de-burring rough metal castings, this finisher adapts to your workload. It comes equipped with a built-in noise-reducing lid and a rugged 9.5” x 21” polyethylene bowl designed to withstand years of use.

Specifications:

• Bowl capacity: 0.75 cu. ft.
• Media capacity: ~6 gallons (about 70% media to 30% parts)
• Motor: 0.38 hp, stationary base with adjustable amplitude
• Noise level: 82 dB
• Electrical: 110V, 2.5 amps, 60Hz
• Capacity: Holds approximately 12 cups of parts (~400 rings)
• Shipping weight: 80.3 lbs
• Dimensions: 28”H x 21” Diameter
• Made in the USA

Recommended Media Loads:

• 66 lbs ceramic media
• 50 lbs plastic media
• 43 lbs shell media
• 22 lbs hardwood media

Whether you’re scaling up production or need a reliable unit for regular finishing work, the TD-75 delivers efficiency, durability, and flexibility in one powerful machine.
