UHT Ushio TurboLap Yellow, 1.2mm Air Side-to-Side Filer

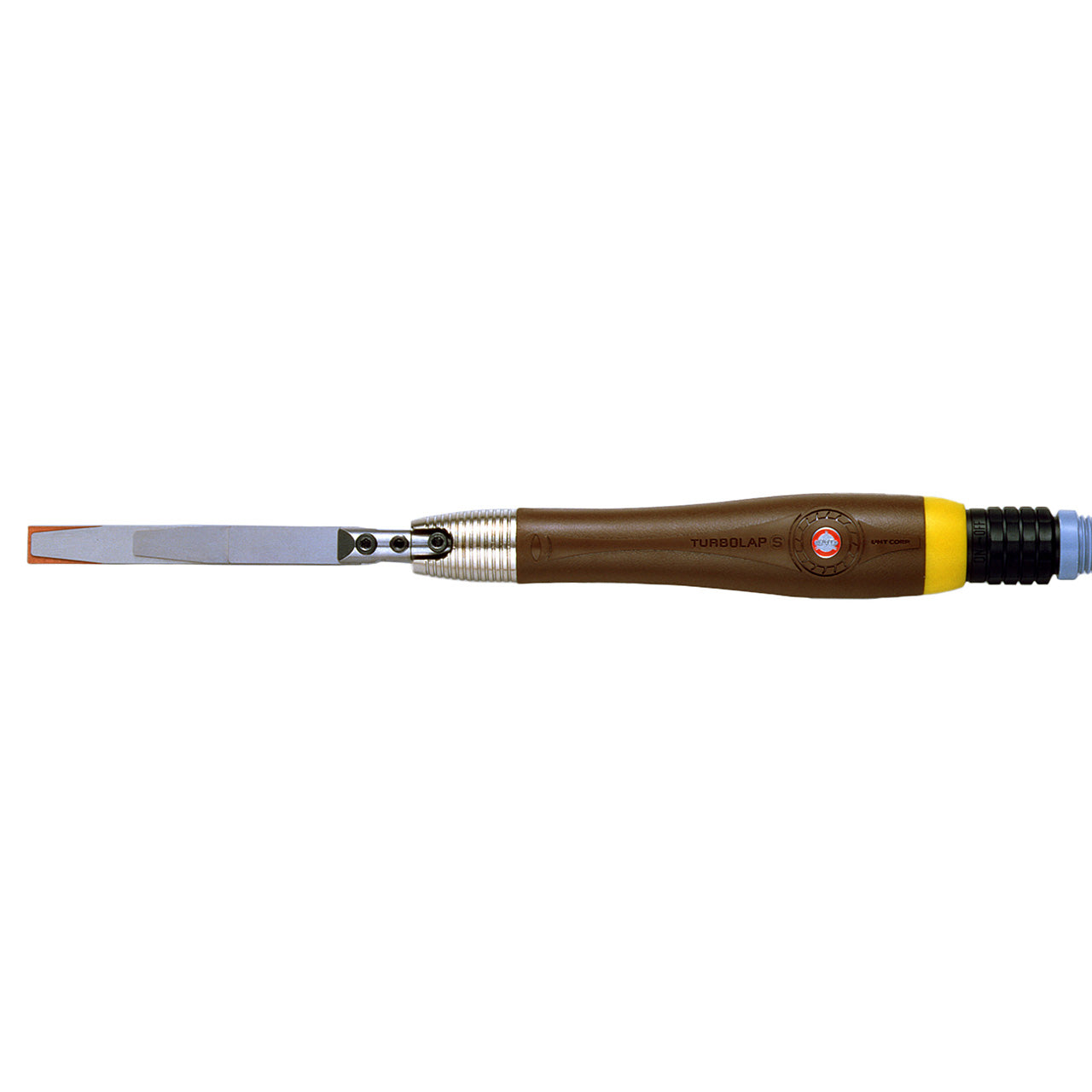

This UHT Ushio TurboLap is a high-speed horizontal elliptical swing air tool with a 1.2mm stroke length. Ideal for filing, lapping and polishing molds or honing precision parts. Makes quick work of using a side-to-side motion while polishing intricate areas. Runs quietly and is designed to be operated for long periods without getting hot.  Lightweight with good balance and ergonomic soft-grip design. Accepts up to 1mm flat or 3mm round tools. Requires 1/4” NPT air connection and Filter/Regulator. No oil lubrication required. Provides optimum results with Diamond Poli Files and 1mm flat Super Ceramic Stones. See also our Turbo Lap diamond files.   Lightweight with good balance and ergonomic soft-grip design. Measures 7" long x 1" diameter.

Specifications:

Max. number of Stroke: 14,000

Stroke length: 1.2mm

Air pressure supply: 0.2MPa-0.3MPa

The amount of air consumption (per min.): 40NL/min

Weight: 180g

Supplied with:

1 Super collet

1 Hexagonal wrench

1 Ceramic stone

1.5 meter of air hose

1 Over hose

2 Hose bands

1 Quick joint

Safety Recommendations for Reciprocating Filers:

Prolonged use of vibrating or reciprocating tools may result in vibration-induced circulation problems in the hands. Always follow safe operating procedures. Using hand protection (i.e., insulated gloves) and taking frequent breaks can help minimize but not guarantee against injury. Operating these types of tools in cold weather or with a tight grip will reduce the period of operation before risking potential injury. Individuals with a tendency to suffer from poor circulation, frequently cold fingers or itchy hands should closely monitor the condition of their hands. If symptoms appear, seek medical advice immediately.
