Tumble-Dump 75

Regular price $1,673.00
Sale price $1,673.00 Regular price
Unit price
Tumble-Dump 75

Tumble-Dump 75

Regular price $1,673.00
Sale price $1,673.00 Regular price
Unit price
Product description
  • Tumble Dump 75
  • Comes in 115V (Domestic) & 230V (International)
  • 21 " bowl capacity is .75 cubic feet
  • Large size offers increased productivity
  • Designed for heavy duty use to deburr or polish
  • Features tumble dump tilting plate w/adjustable amplitude
  • Has a drain
  • Features adjustable amplitude
  • Rated Horsepower: 115v - 0.38 and 230v - 0.31
Replacement parts may be ordered or you may contact Customer Service for a factory repair quote and RMA number

CLICK HERE FOR REPLACEMENT PARTS FOR TD-75

Please be certain you have selected the correct voltage for your location. United States typically uses 115V.

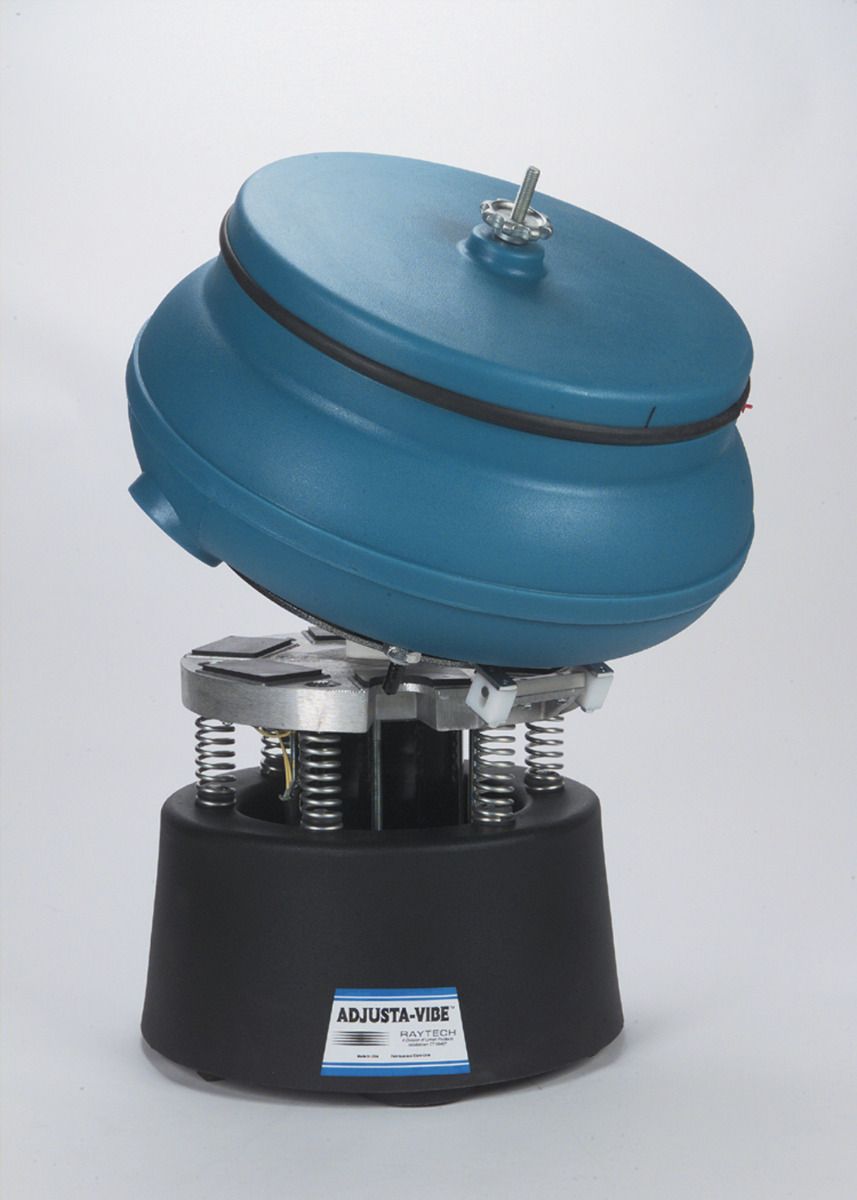

Tumble-Dump™ 40, 75 & 75 DC

 These models incorporate all the features of the Adjusta-Vibe models with one addition: Raytech’s patented Tumble-Dump tilting plate. Discharge port on TD-75DC only.

Shipping weights and volumes are as follows:

TD-40, 56 pounds, 5.06 cubic feet, 18” x 27” x 18”;

TD-75 & TD-75DC, 73 pounds, 9.18 cubic feet, 23” x 30” x 23”.


Tech Tips

Tumble Dump Feature

Raytechs’s Tumble Dump models feature a built-in hinge system that allows the parts and media to be easily removed from the machine. This saves time and money by eliminating the tedious task of unloading and separating by hand.

Before
After

More Information
Part Number 23044r, 24122r
Motor 115v 60Hz 2.5Amps 287W / 230v 50Hz 1.0 Amps 220W
Best Use Deburring metal stampings and machined parts
Helpful Hint See Tech Tips
Unit Weight 73 lbs
Pack Carton Size 9.18 cubic feet
Box Measurements 23” x 30” x 23”
Bowl Capacity Size .75 cubic feet
Bowl Diameter 21 Inches
Bowl Height To Lid 9.5 Inches
Bowl Width To Shaft 7 Inches
