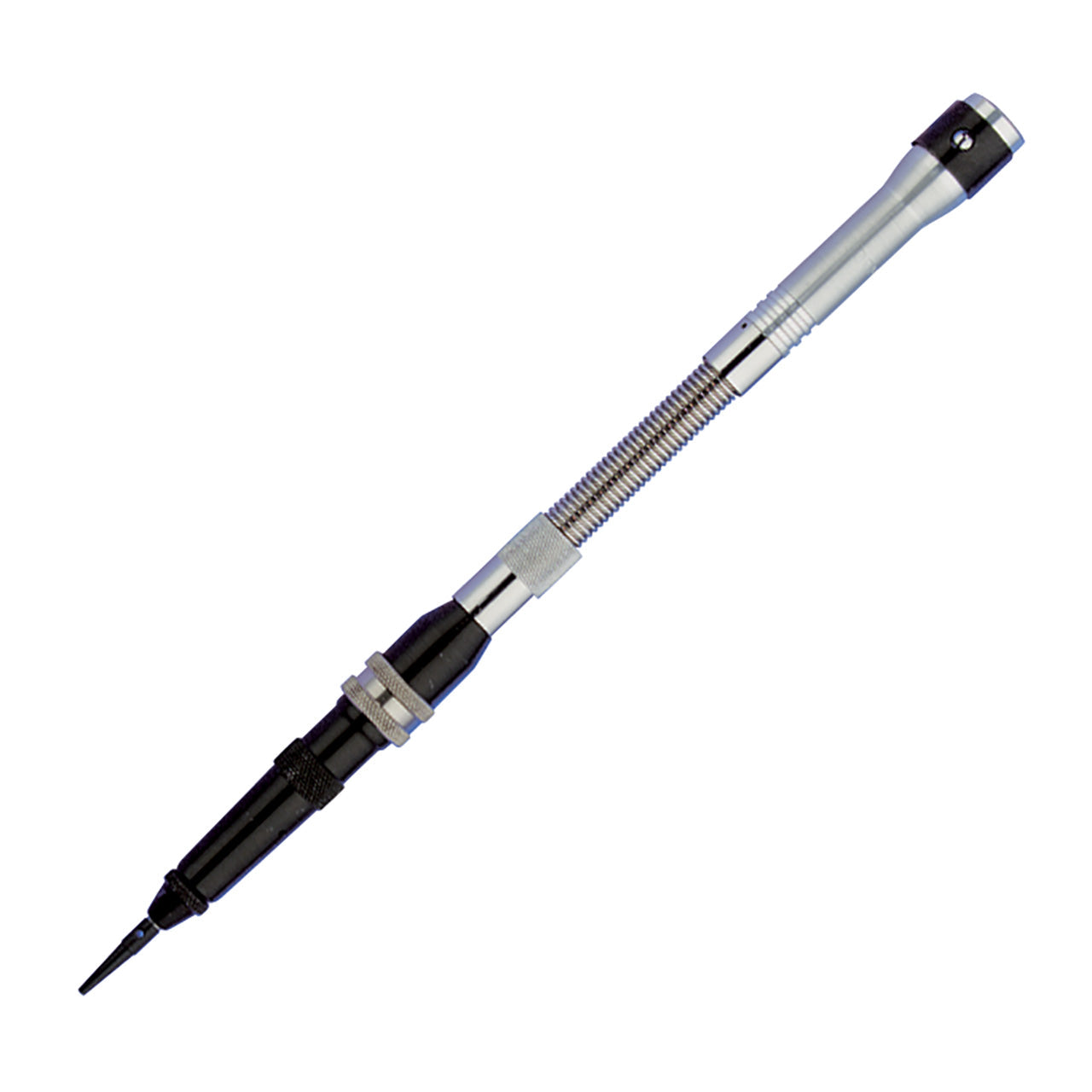

Foredom® Hammer Handpiece #15D with Duplex Spring

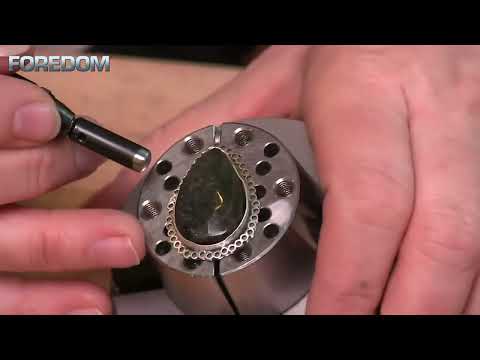

The #15D Handpiece is equipped with a Duplex spring, making it more flexible than the standard model. Often selected for very delicate work and when more precise control is needed. The hammering action is designed for use at low speed (0-5,000 rpm) and this handpiece is often used by jewelers for stone setting and decorative work. Comes with an anvil point. It requires periodic lubrication (see below).  Hammer has 1/32" stroke and its impact can be adjusted from light to heavy by turning the silver knurled adjusting ring counterclockwise towards the tip for a lighter impact and clockwise towards the back of the handpiece for a heavier impact.  Can be operated at speeds from 0–5,000 RPM (or intermittently up to 7,500 RPM). Use at higher speeds will create excessive heat which will damage the handpiece.

The handpiece is supplied with an anvil point. If anvil points are reshaped, they must also be polished.  We suggest using a grinding wheel or abrasive paper.   Optional points are also available.  Changing Points: Insert the pin through the cross hole in the anvil or carbide stylus point. Hold the handpiece firmly and unscrew the point in a counterclockwise direction. (Right hand thread.) A new point can be installed by threading it into the nosepiece and tightening it with the pin.

Lubrication: Before disassembling nosepiece, be sure to clean off any dirt or other foreign matter to prevent it from falling inside the handpiece. Lubricate after every 10 hours of use. Apply no more than 2 drops of oil into the oiling hole located on the barrel of the handpiece and into the hole on the rear of the duplex spring connection of the H.15D.

Always wear safety glasses when using power tools.

Safety Recommendations for Reciprocating handpieces:

Prolonged use of vibrating or reciprocating tools may result in vibration-induced circulation problems in the hands. Always follow safe operating procedures. Using hand protection (i.e., insulated gloves) and taking frequent breaks can help minimize but not guarantee against injury. Operating these types of tools in cold weather or with a tight grip will reduce the period of operation before risking potential injury. Individuals with a tendency to suffer from poor circulation, frequently cold fingers or itchy hands should closely monitor the condition of their hands. If symptoms appear, seek medical advice immediately.

LIMITED WARRANTY

The Foredom Electric Company warrants its product to be free of defects in material or workmanship for a period of 90 days after purchase. During the warranty period, the defective product will be repaired or replaced without charge or, at our option, the purchase price will be refunded. This warranty does not cover damage caused in transit or by accident, misuse, or ordinary wear. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OF FITNESS AND MERCHANTABILITY, ARE HEREBY LIMITED IN DURATION TO A PERIOD ENDING 90 DAYS FROM DATE OF PURCHASE, AND WE WILL NOT BE LIABLE OR RESPONSIBLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES. Repair or replacement will be made at our option if the product is returned post-paid to:

The Foredom Electric Company 16 Stony Hill Road
Bethel, CT USA 06801
All warranty repairs must be done at the factory at the above address. We will not pay any shipping or transportation charges. This warranty only covers the original purchaser of the product. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
