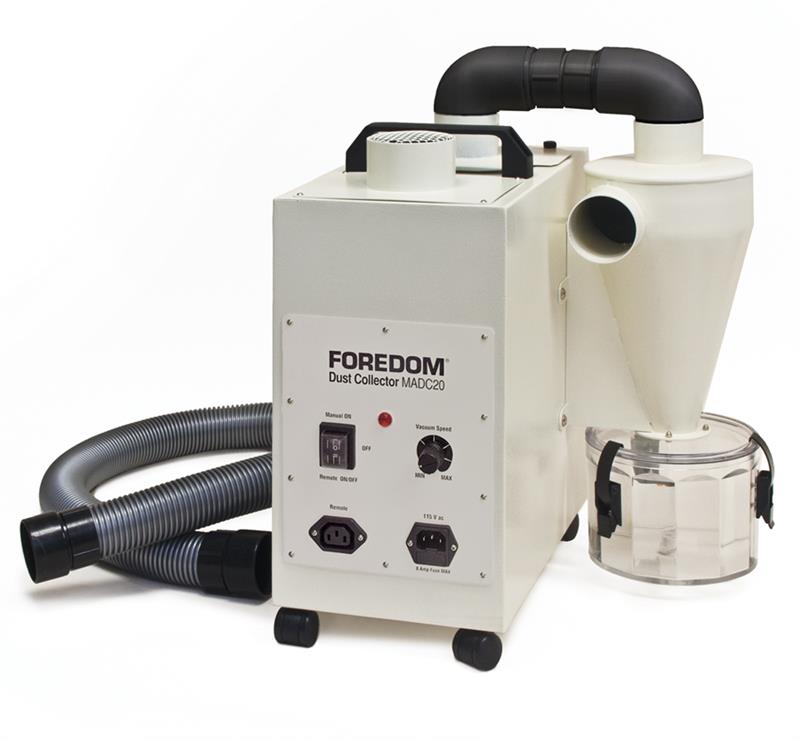

Dust Collector with Cyclone and Collection Chamber, 230 Volt-Int’l

MADC20-2 Dust Collector Owner’s Manual

Use Product Options Menu to Select Collet Size and Plug Option:
UK Plug CE Model (MADC20-21), Continental European Plug CE Model (MADC20-22), Australian Plug (MADC20-26), and Israeli Plug (MADC20-32)

Perfect for any lab, studio and work space that creates harmful dust and debris. Simple to use and ideal for anyone concerned about working in a clean and safe environment.

Foredoms new variable speed MADC20 Dust Collector is whisper quiet at 52dbA with powerful suction at 115CFM. The cyclone with polycarbonate collection chamber pre-filters 99% of all debris and the HEPA filter eliminates 99.98% of debris up to 0.3micron. This quality-built single-station unit has casters for easy portability. It is simple to use and basically maintenance free. It is an excellent companion to Foredom’s MALC15 Lighted Work
Chamber, MALC30 Jumbo Chamber and MADCH-6 Fishmouth. However, it is a stand alone unit for collecting dust from grinding, polishing, deburring and sanding wood, metal, die stone, plaster and many other materials,

Use when working with dry materials ONLY.

Two-Year Limited Warranty

MADC20-2 Includes:
-Cyclone dust collector with collection chamber
-Remote Switch Box with 9 Cable allows you to power on dust collector without having to use the main power switch on unit. Has PSA backing for positioning in convenient location near your work.
-Remote Cord for connecting and powering on the MALC15 Lighted Work Chamber
-6′ Power Cord
-5 Vacuum Hose Assembly
– 2 HEPA Filters. Filter has a 16 Merv Rating, 99.8% of all particles 0.3 micron and larger

Specifications:
Weight: 30-1/2 lb
Ship Weight: 40 lb
Height: 19-1/2 , Width: 15-1/4, Length: 15-1/4
Cyclone Height: 16-1/2, Width: 7-1/2

Shipping Dimensions:
20-1/4 x 20-3/4 x 23-1/4
Hose 2-1/4 Diameter, 5 Length

230 Volt / 3.2 Amp

750 Watt / 115 CFM / 52 dbA
