Raytech CMF-300
Regular price
$265.00
Sale price
$265.00
Regular price
Unit price
Raytech CMF-300
Regular price
$265.00
Sale price
$265.00
Regular price
Unit price
Product description
- CMF-300
- Mechanical timer, fixed mechanical speed
- 1-6 rings or capacity up to 50 grams
- 3” bowl size , Steel pin capacity 30-50 grams (up to 1.75 oz.) depending on the needs of the user and material/parts being finished
- Use only Stainless Steel Pin media
- Use with Raytech Compound M Solution
- 1/32 HP motor in 115 V ( 5 .0 amps) and 230V ( 3.0 amps )
- Product dimensions: 6" x 6" x 9"
- Box dimensions: 7" x 8" x 10"

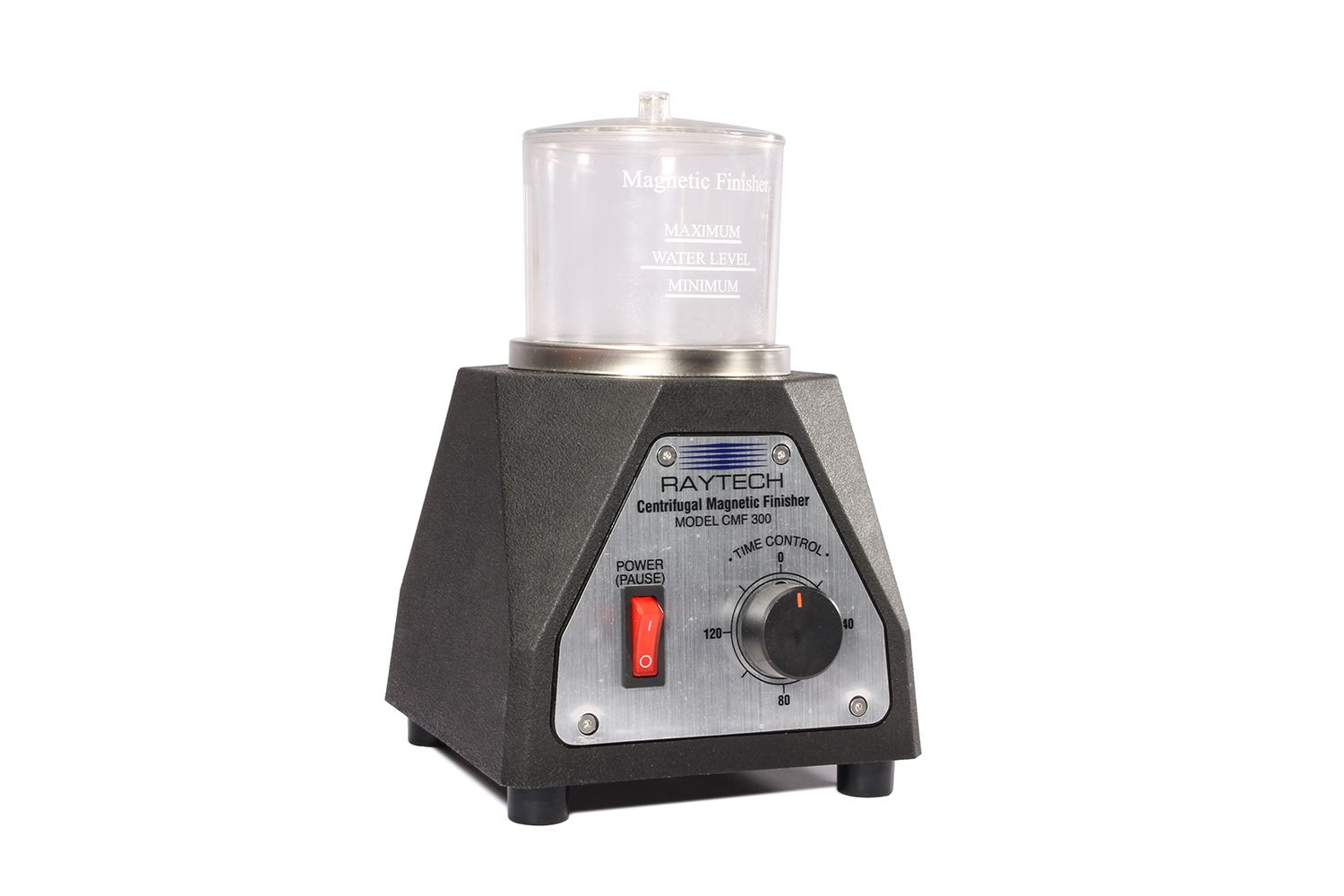

Raytech’s smallest capacity magnetic finisher has a 3-inch (76.2) diameter chamber that finishes the equivalent of 1 to 6 rings. Pin capacity 30-50 grams ( 1.0 – 1.75 ounces ) depending on the needs of the user and material/parts being finished. The CMF-300 has a fixed speed with mechanical timer and molded bowl and cover. Not for use with dry bowls media.
1/32 hp motor, Shipping weight 10 pounds; shipping volume 1.0 cubic feet, 7” x 8” x 10”.
Before
After
| Unit Weight | 10 lbs |
|---|---|
| Speed | Mechanical timer , not programmable. Fixed mechanical speed with timer. No FWD/REV |
| Bowl / Chamber Diameter | 3 inches /76.2 mm |
| Rings Capacity | 1-6 rings |
| Turbo Pins Capacity | 30-50 grams ( 1.0 – 1.75 ounces ) depending on the needs of the user and material/parts being finished |
| Motor HP | 1/32 RPM 120v 2400 +/-10% RPM 230v 2250 +/-10% RPM |
| Master Carton Box Measurements | 7" x 8" x 10" |
| Master Carton / Box cu. ft. | 1 cubic foot |
| Helpful Hints for Media/Bowl Use | Can only use Stainless Steel Turbo Pin media. |
| Helpful Hints for Usage | Average run time is 30 minutes but inspect after 5 minutes to check progress. Fill bowl with water to fill line and use 4-5 drops of Compound M. |
