Aquaflame Soldering Torch Model 800

Regular price $3,895.00
Sale price $3,895.00 Regular price
Unit price
Aquaflame Soldering Torch Model 800

Aquaflame Soldering Torch Model 800

Regular price $3,895.00
Sale price $3,895.00 Regular price
Unit price
Product description

Product Description

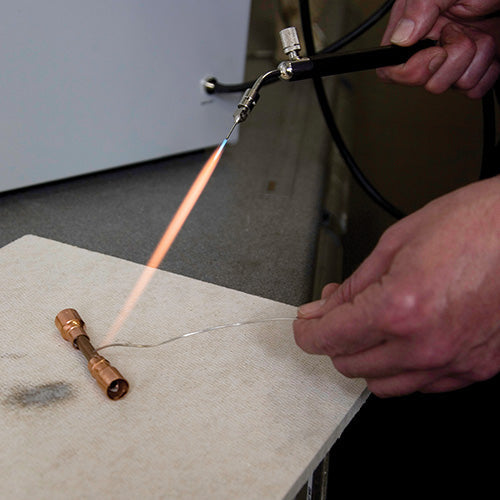

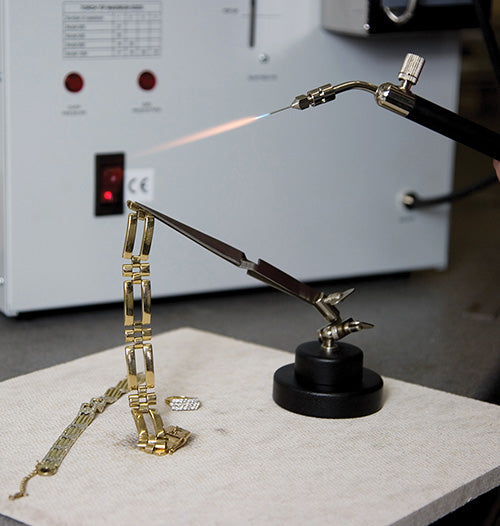

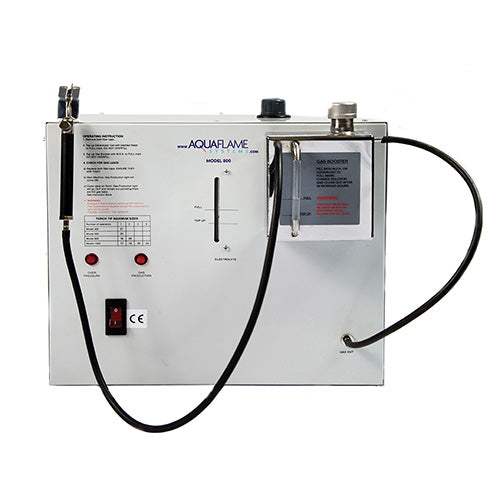

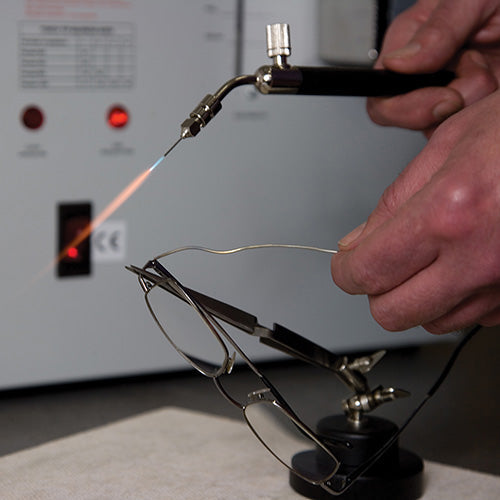

The Model 800 Aquaflame Torch is ideal for soldering Silver, Gold, Platinum, Stainless Steel and some Titanium Alloys, and can also handle heavy soldering. Made of the highest quality components the Aquaflame torch system is a complete soldering system—bottled gas with pressurized fuel tanks are a thing of the past. The powerful yet compact generator converts distilled/deionized water into hydrogen and oxygen gases by electrolysis. Minimal maintenance is required and to prove the exceptional construction and use, Aquaflame Torch Systems boast a full 2-year warranty!   A nice range of tips (from #18 which is a 0.90mm bore size to #24 which is 0.31mm) are supplied with the Model 800 unit to perform standard soldering tasks such as re-sizing or re-tipping.  The Aquaflame Torch system is a must for any jeweler/repair facility. Extensively used in the jewelry industry, Aquaflame Systems are also used in the dental and other technical manufacturing industries since they are ideal for precision soldering and micro welding.  The Model 800 can produce gas up to 120 liters/hour using 50ml of distilled water per day.  Reaches a maximum temperature of 3,300°C

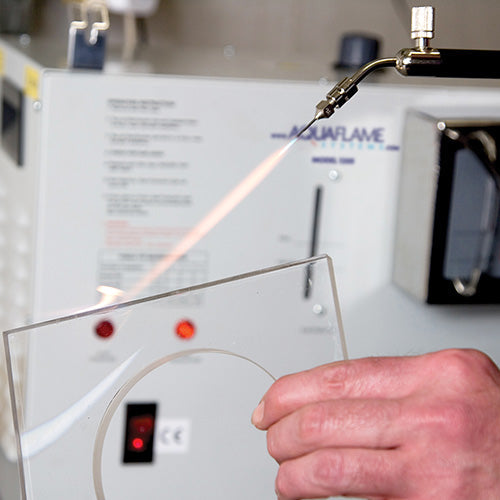

A clean precise environmentally friendly flame is obtained by using Methyl-Ethyl-Ketone (MEK). MEK leaves no residue on the surgical steel tips. This is far safer than the toxic/hazardous Methanol also known as Methyl Alcohol which is commonly used in other competitive torches. The operator will find the light-weight torch handle easy to hold and for safety, it contains a built-in Flashback Arrestor. When using liquid flux or flux based paste solders, you will see less fire scale which is commonly found when working on silver.  Aquaflame Torches are also widely used for acrylic flame polishing (edge polishing on acrylic) in plastic fabrication as this method requires no other materials or compounds and can finish intricate shapes quickly and easily.  The Model 800 can polish a 10mm thickness in one pass; 2 minute per meter.  Generally uses 0.80 kW of electricity. The  Model 800 can have one additional operator for a total of 2 by purchasing  a 830-1084 for that additional operator - sold separately.

Complete with 2-year manufacturer's warranty; however since servicing required every 12 months, or 4,000 working hours, which ever comes first, for warranty to apply; we suggest purchasing the services kit see 830-1081 for Model 800.  Foot print measures 16"Lx11"Wx15"H (400mm x 280mm x 380mm).  Proudly made in the United Kingdom with CE approval.

NOTE: Requires (1) of electrolyte (830-0044). Also requires (1) of MEK (830-0042). Both sold separately.


Equipment Information Model 500 Model 800** Model 1200**
Reference Number 830-1005 830-1006 830-1007
Gas production 75 lt/h 120 lt/h 240 lt/h
Distilled water use (per day) 30ml 50ml 100ml
Maximum flame temperature 3300c 3300c 3300c
Electrical usage 0.50 kW 0.80 kW 1.20 kW
Flash back fitted Yes Yes Yes
Torch tips range supplied 20 - 24 18 - 24 17 - 24
Torch tips bore size supplied (mm) 0.60 - 0.31 0.90 - 0.31 1.00 - 0.31
Service recommended period 4000 working hours 4000 working hours 4000 working hours
Warranty period* 2 years 2 years 2 years
Length 16" (400mm) 16" (400mm) 17.5" (440mm)
Width 8" (200mm) 11" (280mm) 12.5" (320mm)
Height 12" (300mm) 15" (380mm) 15.5" (395mm)

Shipping Weight


 44lbs/18kg 66lbs/33kg 110lbs/49kg
Flame Polishing Details
Chemical for flame positioning MEK MEK MEK
Thickness that can be polished in one pass 5mm 10mm 15mm
Typical polishing times (per meter) 1 min 2 mins 3 mins

*Servicing required every 12 months for warranty to apply.
**Non-stock, special order and must ship via truck.
Due to continuous improvements, some of the above details may change without notice.

Product Specifications

Brand: Aquaflame
Country of Origin: United Kingdom of Great Britain and Northern Ireland
Item Length: 16"
Item Width: 11"
Item Height: 15"
Model: 800
Use: melt up to 20gms
