Aquaflame Soldering Torch Model 500~

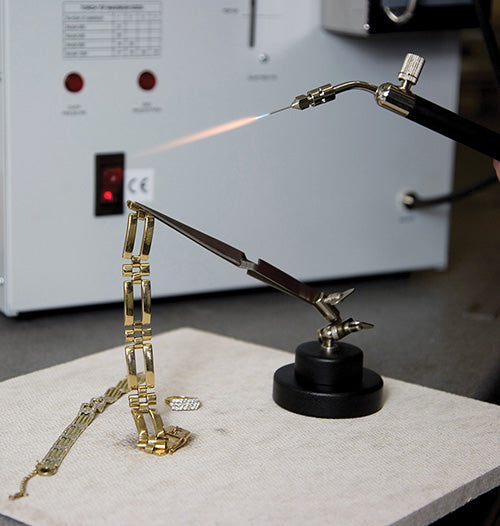

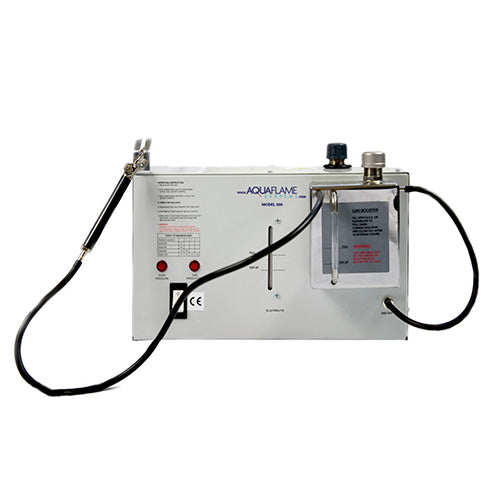

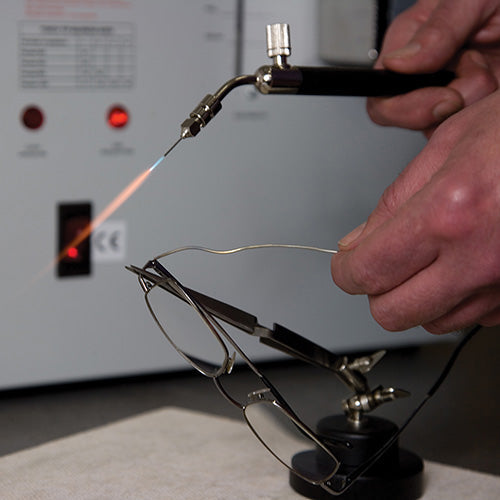

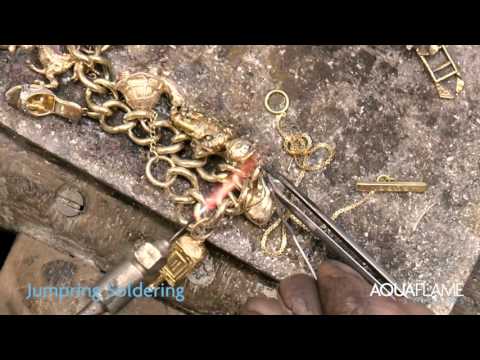

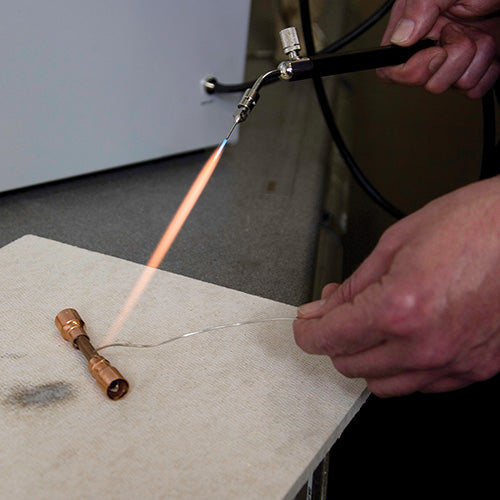

The Model 500 Aquaflame Torch is ideal for soldering Silver, Gold, Stainless Steel, and some Titanium Alloys.  Made of the highest quality components, the Aquaflame torch system is a complete soldering system—bottled gas with pressurized fuel tanks are a thing of the past. The powerful yet compact generator converts distilled/deionized water into hydrogen and oxygen gases by electrolysis. Minimal maintenance is required and to prove the exceptional construction and use, Aquaflame Torch Systems boast a full 2-year warranty!   A nice range of tips (from #20 which is a 0.60mm bore size to #24 which is 0.31mm) are supplied with the Model 500 unit to perform standard soldering tasks such as re-sizing or re-tipping.  The Aquaflame Torch system is a must for any jeweler/repair facility. Extensively used in the jewelry industry, Aquaflame Systems are also used in the dental and other technical manufacturing industries since they are ideal for precision soldering and micro welding.   The Model 500 can produce gas up to 75 liters/hour using 30ml of distilled water per day.  Reaches a maximum temperature of 3,300°C

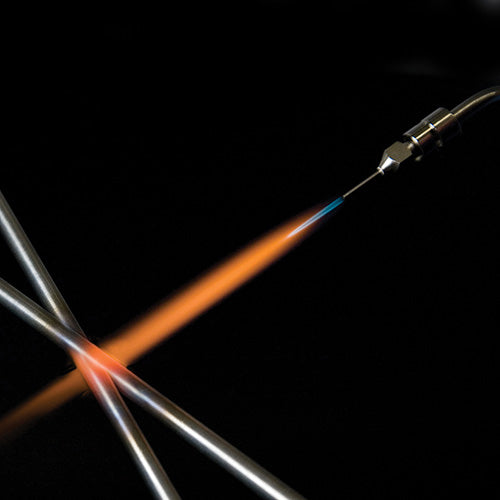

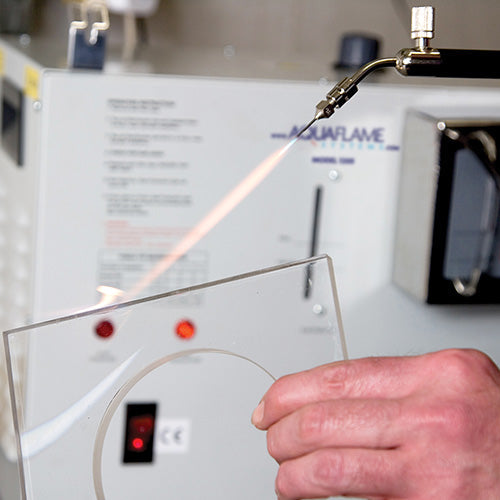

A clean precise environmentally friendly flame is obtained by using Methyl-Ethyl-Ketone (MEK). MEK leaves no residue on the surgical steel tips. This is far safer than the toxic/hazardous Methanol also known as Methyl Alcohol which is commonly used in other competitive torches. The operator will find the light-weight torch handle easy to hold and for safety, it contains a built-in Flashback Arrestor. When using liquid flux or flux based paste solders, you will see less fire scale which is commonly found when working on silver. Aquaflame Torches are also widely used for acrylic flame polishing (edge polishing on acrylic) in plastic fabrication as this method requires no other materials or compounds and can finish intricate shapes quickly and easily.  The Model 500 can polish a 5mm thickness in one pass; 1 minute per meter.  Generally uses 0.50 kW of electricity.

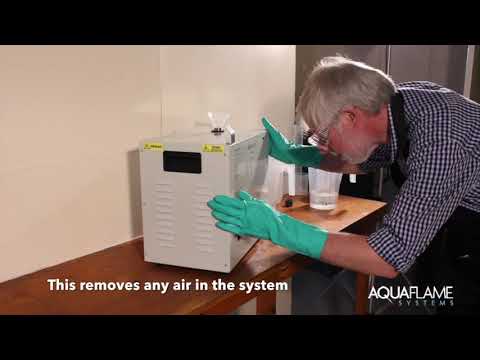

Complete with 2-year manufacturer's warranty; however since servicing required every 12 months, or 4,000 working hours, which ever comes first, for warranty to apply; we suggest purchasing the services kit see 830-1080 for Model 500.  Foot print measures 16"Lx8"Wx12"H (400mm x 200mm x 300mm).  Proudly made in the United Kingdom with CE approval. .

NOTE: Requires (1) of electrolyte (830-0043). Also requires (1) of MEK (830-0042). Both sold separately.

Equipment Information	Model 500	Model 800**	Model 1200**
Reference Number	830-1005	830-1006	830-1007
Gas production	75 lt/h	120 lt/h	240 lt/h
Distilled water use (per day)	30ml	50ml	100ml
Maximum flame temperature	3300c	3300c	3300c
Electrical usage	0.50 kW	0.80 kW	1.20 kW
Flash back fitted	Yes	Yes	Yes
Torch tips range supplied	20 - 24	18 - 24	17 - 24
Torch tips bore size supplied (mm)	0.60 - 0.31	0.90 - 0.31	1.00 - 0.31
Service recommended period	4000 working hours	4000 working hours	4000 working hours
Warranty period*	2 years	2 years	2 years
Length	16" (400mm)	16" (400mm)	17.5" (440mm)
Width	8" (200mm)	11" (280mm)	12.5" (320mm)
Height	12" (300mm)	15" (380mm)	15.5" (395mm)
Shipping Weight	44lbs/18kg	66lbs/33kg	110lbs/49kg
Flame Polishing Details
Chemical for flame positioning	MEK	MEK	MEK
Thickness that can be polished in one pass	5mm	10mm	15mm
Typical polishing times (per meter)	1 min	2 mins	3 mins

*Servicing required every 12 months for warranty to apply.
**Non-stock, special order and must ship via truck.
Due to continuous improvements, some of the above details may change without notice.
