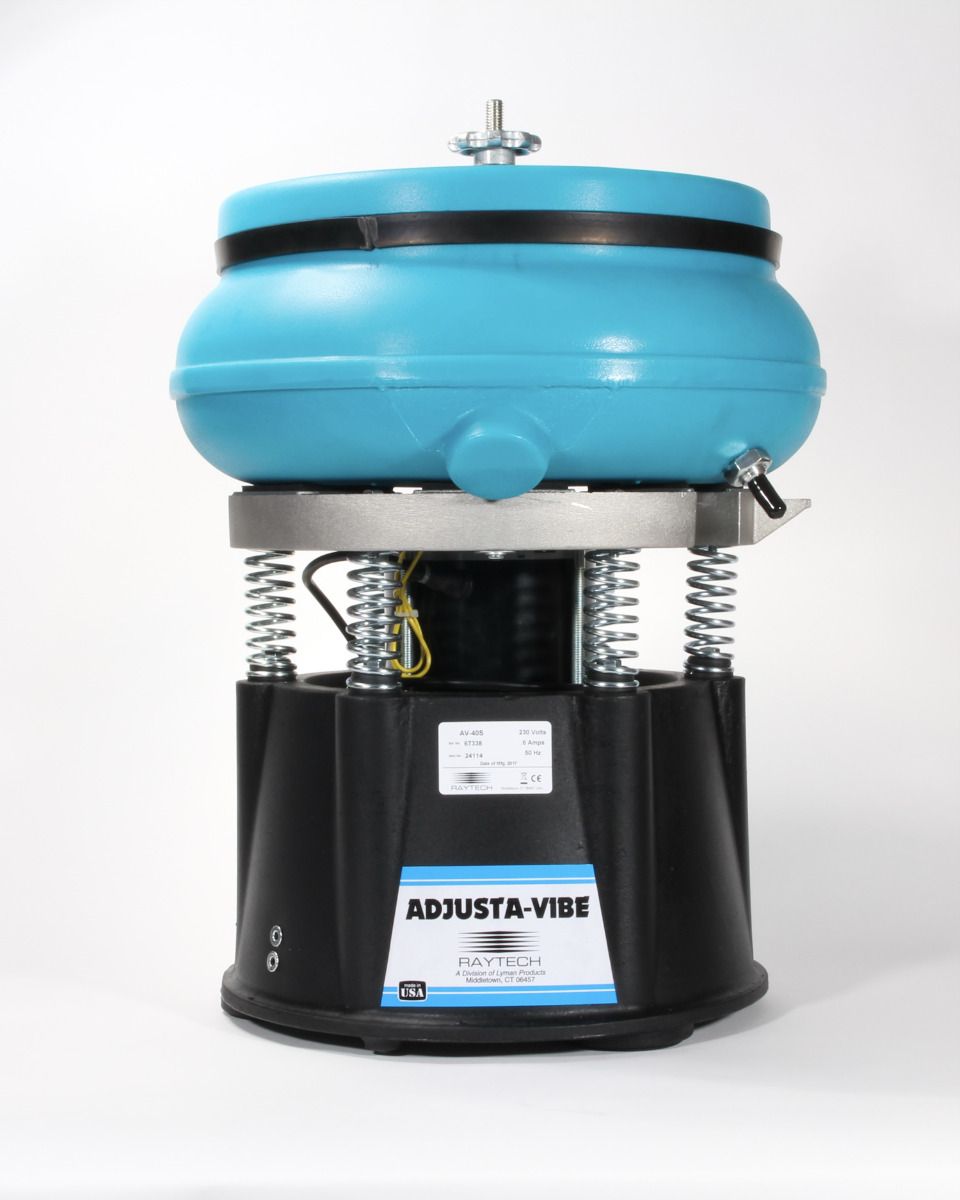

Raytech Adjusta-Vibe 40
Raytech Adjusta-Vibe 40
- Adjusta-Vibe 40
- Comes in 115V (Domestic) & 230V (International)
- 17 " bowl capacity is .35 cubic feet
- Has a drain
- Designed for heavy duty use to deburr or polish
- Features adjustable amplitude Calibri (Body)
- Rated Horsepower: 115v - 0.38 and 230v - 0.31
CLICK HERE FOR REPLACEMENT PARTS FOR AV-40
Please be certain you have selected the correct voltage for your location. United States typically uses 115V.
Adjusta-Vibe 40
Model 40 vibratory machines are compact, yet have a capacity of .35 cubic feet and are equipped with amplitude adjustment, inlet and outlet ports for compound rinsing systems and heavy duty cross-linked 17-inch polyethylene bowl. Noise reducing lids are standard. When steel burnishing is required, use Model AV-40SS. Can use dry or wet media. Noise level 82db.
Shipping weight 51 pounds; shipping volume 5.06 cubic feet, 18” x 27” x 18”.
The working capacity of the Adjusta-Vibe 40 and 40SS is .35 cubic feet, or three gallons.
The working capacity of the model 75 is .75 cubic feet, or approximately 6 gallons.
This capacity includes both the media and the workpieces.
The general rule of thumb is 70% media and 30% parts.
Deburring metal stampings and machined parts.
Descaling metal castings.
Cutting radii on sharp edge of metal parts.
Polishing metal and plastic parts.
| Part Number | 23026R and 24114R |
|---|---|
| Motor | 115v 60Hz 2.5 Amps 287W /// 230v 50Hz 1.0 Amps 220W |
| Best Use | Deburring metal castings |
| Helpful Hint | See PDF instructions |
| Unit Weight | 51 lbs |
| Pack Carton Size | 5.06 cubic feet |
| Box Measurements | 18” x 27” x 18”. |
| Bowl Capacity Size | .35 cubic feet |
| Bowl Diameter | 17 inches |
| Bowl Height To Lid | 7 Inches |
| Bowl Width To Shaft | 4.25 Inches |
